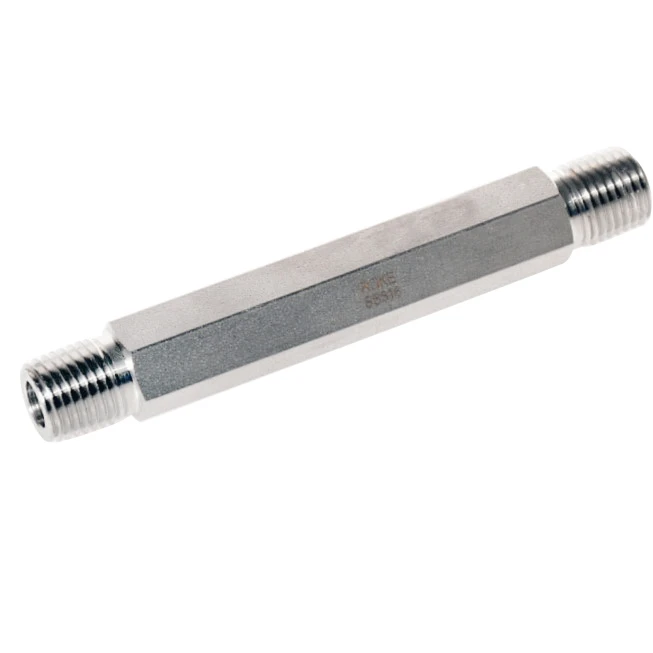

Raccords de tuyaux forgés du mamelon hexadécimal
Connexion: Thread masculin
Traitement de surface: sans traitement
Type de tête: hexagonal
Certificat: ISO9001, CE, BV, ABS, DNV, RS
Détails rapides
-
Matériau: acier inoxydable
-
Techniques: forgé
-
Type: tuyau en acier inoxydable fileté
-
Lieu d'origine: Jiangsu, Chine (continentale)
-
Numéro de modèle: SS-THL-MN
-
Nom de marque: Roke
-
Connexion: Thread masculin
-
Code de tête: rond
-
Application: Général
-
Personnalisé: disponible
-
Medium: huile, eau, etc.
-
Taille: 1 / 8-1 inh
HexagonalLongMamelons
|
Filetages NPT masculins |
||||||
|
Taille P-NPT |
Numéro de commande de base |
Dimension, dans (mm) |
Pression de travail psig (bar) |
|||
|
L |
F(Hex) |
E |
316SS, acier |
/ |
||
|
1/8 |
-Thl-mn 2-1. 5 |
1.50 (38.1) |
0.44 (11.1) |
0.19 (4.8) |
10000 (689) |
5000 (344) |
|
1/8 |
-Thl-mn 2-2 |
2.00 (50.8) |
0.44 (11.1) |
0.19 (4.8) |
10000 (689) |
5000 (344) |
|
1/8 |
-Thl-mn 2-2. 5 |
2.50 (63.5) |
0.44 (11.1) |
0.19 (4.8) |
10000 (689) |
5000 (344) |
|
1/8 |
-Thl-mn 2-3 |
3.00 (76.2) |
0.44 (11.1) |
0.19 (4.8) |
10000 (689) |
5000 (344) |
|
1/4 |
-Thl-mn 4-1. 5 |
1.50 (38.1) |
0.56 (14.3) |
0.28 (7.1) |
8000 (551) |
4000 (275) |
|
1/4 |
-Thl-mn 4-2 |
2.00 (50.8) |
0.56 (14.3) |
0.28 (7.1) |
8000 (551) |
4000 (275) |
|
1/4 |
-Thl-mn 4-2. 5 |
2.50 (63.5) |
0.56 (14.3) |
0.28 (7.1) |
8000 (551) |
4000 (275) |
|
1/4 |
-Thl-mn 4-3 |
3.00 (76.2) |
0.56 (14.3) |
0.28 (7.1) |
8000 (551) |
4000 (275) |
|
1/4 |
-Thl-mn 4-4 |
4.00 (101.6) |
0.56 (14.3) |
0.28 (7.1) |
8000 (551) |
4000 (275) |
|
3/8 |
-Thl-mn 6-1. 5 |
1.50 (38.1) |
0.69 (17.5) |
0.38 (9.7) |
7800 (537) |
3900 (268) |
|
3/8 |
-Thl-mn 6-2 |
2.00 (50.8) |
0.69 (17.5) |
0.38 (9.7) |
7800 (537) |
3900 (268) |
|
3/8 |
-Thl-mn 6-2. 5 |
2.50 (63.5) |
0.69 (17.5) |
0.38 (9.7) |
7800 (537) |
3900 (268) |
|
3/8 |
-Thl-mn 6-3 |
3.00 (76.2) |
0.69 (17.5) |
0.38 (9.7) |
7800 (537) |
3900 (268) |
|
3/8 |
-Thl-mn 6-4 |
4.00 (101.6) |
0.69 (17.5) |
0.38 (9.7) |
7800 (537) |
3900 (268) |
|
1/2 |
-Thl-mn 8-2 |
2.00 (50.8) |
0.87 (22.2) |
0.47 (11.9) |
7700 (530) |
3800 (261) |
|
1/2 |
-Thl-mn 8-3 |
3.00 (76.2) |
0.87 (22.2) |
0.47 (11.9) |
7700 (530) |
3800 (261) |
|
1/2 |
-Thl-mn 8-4 |
4.00 (101.6) |
0.87 (22.2) |
0.47 (11.9) |
7700 (530) |
3800 (261) |
|
1/2 |
-Thl-mn 8-6 |
6.00 (152.4) |
0.87 (22.2) |
0.47 (11.9) |
7700 (530) |
3800 (261) |
|
3/4 |
-Thl-mn 12-2 |
2.00 (50.8) |
1.06 (27.0) |
0.62 (15.7) |
7300 (502) |
3600 (248) |
|
3/4 |
-Thl-mn 12-3 |
3.00 (76.2) |
1.06 (27.0) |
0.62 (15.7) |
7300 (502) |
3600 (248) |
|
3/4 |
-Thl-mn 12-4 |
4.00 (101.6) |
1.06 (27.0) |
0.62 (15.7) |
7300 (502) |
3600 (248) |
|
1 |
-Thl-mn 16-3 |
3.00 (76.2) |
1.37 (34.9) |
0.88 (22.4) |
5300 (365) |
2600 (179) |
|
1 |
-Thl-mn 16-4 |
4.00 (101.6) |
1.37 (34.9) |
0.88 (22.4) |
5300 (365) |
2600 (179) |
|
Filetages mâles effilés |
||||||
|
Taille P-RT |
Numéro de commande de base |
Dimension, dans (mm) |
Pression de travail psig (bar) |
|||
|
L |
F(Hex) |
E |
316SS, acier |
Laiton |
||
|
1/8 |
-Thl-mr 2- 2 |
R2.00 (50.8) |
0.44 (11.1) |
0.19 (4.8) |
10000 (689) |
5000 (344) |
|
1/8 |
-Thl-mr 2-2. 5 |
2.50 (63.5) |
0.44 (11.1) |
0.19 (4.8) |
10000 (689) |
5000 (344) |
|
1/8 |
-Thl-mr 2-3 |
3.00 (76.2) |
0.44 (11.1) |
0.19 (4.8) |
10000 (689) |
5000 (344) |
|
1/4 |
-Thl-mr 4-2 |
2.00 (50.8) |
0.56 (14.3) |
0.28 (7.1) |
8000 (551) |
4000 (275) |
|
1/4 |
-Thl-mr 4-2. 5 |
2.50 (63.5) |
0.56 (14.3) |
0.28 (7.1) |
8000 (551) |
4000 (275) |
|
1/4 |
-Thl-mr 4-3 |
3.00 (76.2) |
0.56 (14.3) |
0.28 (7.1) |
8000 (551) |
4000 (275) |
|
1/4 |
-Thl-mr 4-4 |
4.00 (101.6) |
0.56 (14.3) |
0.28 (7.1) |
8000 (551) |
4000 (275) |
|
3/8 |
-Thl-mrt 6-2 |
2.00 (50.8) |
0.69 (17.5) |
0.38 (9.7) |
7800 (537) |
3900 (268) |
|
3/8 |
-Thl-mr 6-2. 5 |
2.50 (63.5) |
0.69 (17.5) |
0.38 (9.7) |
7800 (537) |
3900 (268) |
|
3/8 |
-Thl-mr 6-3 |
3.00 (76.2) |
0.69 (17.5) |
0.38 (9.7) |
7800 (537) |
3900 (268) |
|
3/8 |
-Thl-mr 6-4 |
4.00 (101.6) |
0.69 (17.5) |
0.38 (9.7) |
7800 (537) |
3900 (268) |
|
1/2 |
-Thl-mr 8-2 |
2.00 (50.8) |
0.87 (22.2) |
0.47 (11.9) |
7700 (530) |
3800 (261) |
|
1/2 |
-Thl-mr 8-3 |
3.00 (76.2) |
0.87 (22.2) |
0.47 (11.9) |
7700 (530) |
3800 (261) |
|
1/2 |
-Thl-mr 8-4 |
4.00 (101.6) |
0.87 (22.2) |
0.47 (11.9) |
7700 (530) |
3800 (261) |
|
1/2 |
-Thl-mr 8-6 |
6.00 (152.4) |
0.87 (22.2) |
0.47 (11.9) |
7700 (530) |
3800 (261) |
|
3/4 |
-Thl-mr 12-2 |
2.00 (50.8) |
1.06 (27.0) |
0.62 (15.7) |
7300 (502) |
3600 (248) |
|
3/4 |
-Thl-mr 12-3 |
3.00 (76.2) |
1.06 (27.0) |
0.62 (15.7) |
7300 (502) |
3600 (248) |
|
3/4 |
-Thl-mr 12-4 |
4.00 (101.6) |
1.06 (27.0) |
0.62 (15.7) |
7300 (502) |
3600 (248) |
|
1 |
-Thl-mr 16-3 |
3.00 (76.2) |
1.37 (34.9) |
0.88 (22.4) |
5300 (365) |
2600 (179) |
|
1 |
-Thl-mr 16-4 |
4.00 (101.6) |
1.37 (34.9) |
0.88 (22.4) |
5300 (365) |
2600 (179) |
